Antenna Calculators, Aiming Tools & RF Guides

Design, cut and aim any antenna, from a 40 m wire dipole to a 5.8 GHz patch. Every calculator shows its formula, its limits and a worked example.

Quick dipole lengthLive
Total length–
Each leg–
Wavelength–
2 mm bare wire, free spaceFull calculator →
  • 35+ free toolscalculators and aiming tools
  • 100 kHz to 100 GHzHF, VHF, UHF and microwave
  • Formulas shownwith sources and limits
  • Free, no sign-upworks on any phone

Find the right tool

35+ free tools, grouped by what you want to do. Each one tells you what to cut, etch, order or aim.

By frequency band

Not sure of the antenna type yet? Start from your band.

Which antenna should you use?

Pick what you want to do. You get the antennas that fit, what each is best for, and the catch to watch out for.

Over-the-air TV

Most US TV stations broadcast on UHF channels 14–36. Some still use VHF channels 2–13. Check your local stations before you buy or build.

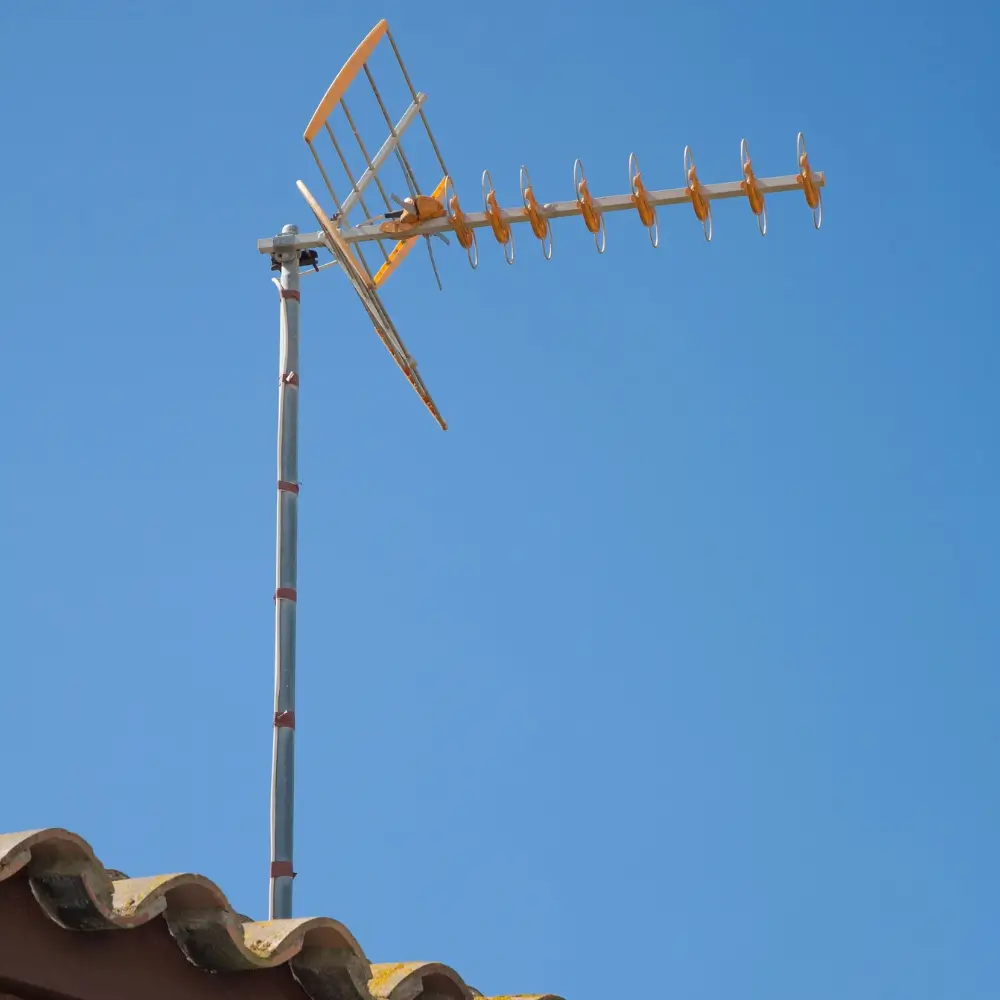

Yagi-Uda
Best forOutdoor or attic, stations far away or weak
Watch outMust be aimed. Narrow beam, so towers in different directions are hard.
Log periodic
Best forCovers VHF and UHF stations with one antenna
Watch outLess gain than a Yagi of the same length.

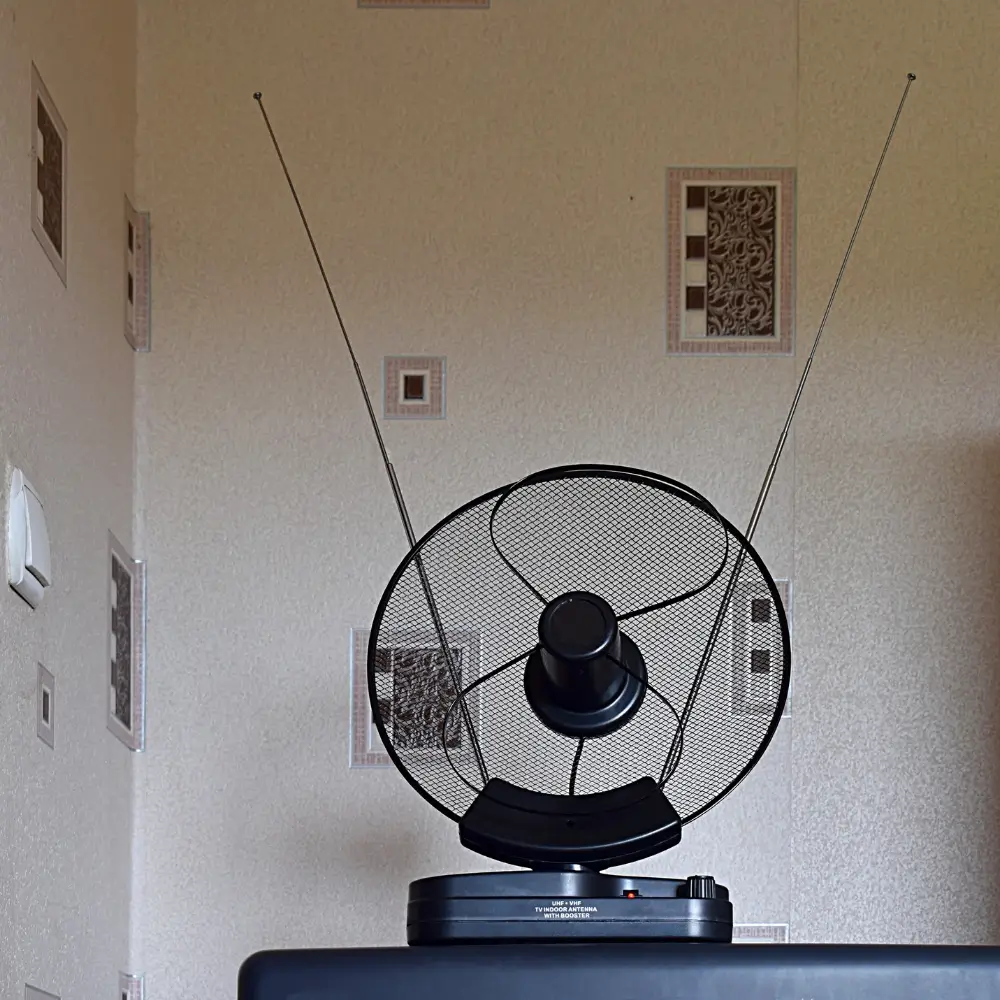

Bow tie
Best forIndoor or attic, towers close by
Watch outLow gain. Many small designs miss VHF stations.

Tip: If even one of your stations is on VHF, a small UHF-only antenna will not receive it well. Use the TV antenna direction finder to see your stations and where to point.

Ham radio HF

HF covers 3–30 MHz. Antennas are big, so space and supports decide most choices.

Dipole
Best forFirst HF antenna, one band, cheap
Watch outNeeds two supports and a center feed.
End-fed wire
Best forOne support point, several bands
Watch outNeeds a matching unit and a good common-mode choke.
Vertical with radials
Best forSmall yard, long-distance (DX) contacts
Watch outNeeds radials. Often picks up more local noise.
Loop
Best forQuiet receive, multiband with a tuner
Watch outLarge, and needs several supports.

Tip: Height matters a lot on HF. A dipole at λ/2 height works far better for DX than one at λ/8.

Ham VHF & UHF

2 m and 70 cm are used for repeaters, FM simplex, satellites and weak-signal work.

Ground plane
Best forRepeaters and local FM, all directions
Watch outLow gain compared with a beam.
Yagi-Uda
Best forSatellites, SSB and weak signals
Watch outMust be aimed. Polarization must match.
Whip
Best forCar and handheld use
Watch outPerformance depends on the vehicle or radio as ground.

Tip: FM repeaters use vertical polarization. SSB and weak-signal work usually use horizontal.

Wi-Fi, LoRa & IoT

433 MHz to 5.8 GHz. Range depends on antenna gain, height and a clear line of sight.

Ground plane or whip
Best forGateways and nodes that talk in all directions
Watch outModerate gain only.
Patch panel
Best forPoint-to-point links and wall-mounted access points
Watch outDirectional, so it must face the other end.
Yagi-Uda
Best forLong links between two fixed points
Watch outNarrow beam, aim with care.
Helical
Best forLong range with circular polarization
Watch outBulky compared with a patch.

Tip: At 2.4 GHz and above, trees and walls block signal. Check clearance with the Fresnel zone calculator before you add gain.

GPS, satellite & FPV

These systems often use circular polarization. Match the hand (RHCP or LHCP) at both ends.

Patch
Best forGPS receivers, small and flat
Watch outLow gain. Needs a ground plane under it.
Helical
Best forSatellite links and long-range FPV
Watch outMust be aimed. Larger than a patch.
Cloverleaf
Best forFPV video, all directions
Watch outLow gain, fragile in crashes.

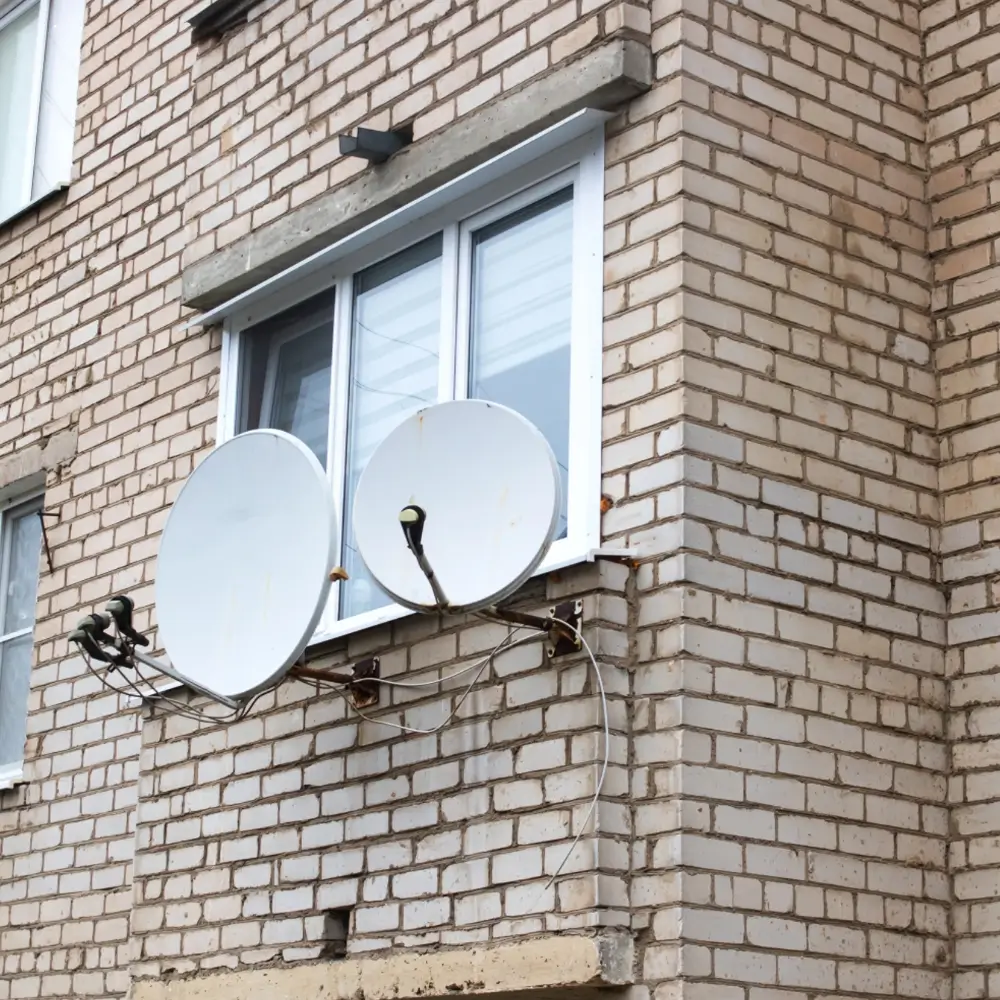

Dish
Best forSatellite TV and microwave links
Watch outVery narrow beam, needs exact alignment.

Tip: A right-hand antenna talking to a left-hand antenna loses a lot of signal.

Inside a product

Board space, ground plane size and the enclosure matter as much as the antenna.

Inverted-F (IFA & PIFA)
Best forPhones, wearables, Bluetooth and Wi-Fi modules
Watch outNeeds a clear area and a solid ground plane.
Microstrip patch
Best forFlat directional antennas on PCB
Watch outLarger than an IFA at the same frequency.
Slot
Best forMetal housings and ground planes
Watch outTuning depends on the full board.
NFC coil
Best forTap-to-pay and tag readers at 13.56 MHz
Watch outVery short range by design.

Tip: Plastic cases, batteries and hands detune small antennas. Test in the final enclosure.

N magnetic N 58° your antenna

Example: the transmitter is 58° from true north. A phone compass shows magnetic north, so correct for declination before you aim.

How to point an antenna in the right direction

Short answer: Point a directional antenna straight at the transmitter. Find the compass bearing to the tower, mount the antenna high with a clear view, aim it, then turn it a few degrees at a time while you watch signal strength. Lock it where the signal peaks.

  1. Find where the signal comes fromUse our TV antenna direction finder. In the US, the FCC DTV Reception Maps also list the stations at your address and the direction to each tower. For Wi-Fi links, cell boosters or ham contacts, use the location of the other end.
  2. Check true north vs magnetic northSome tools give bearings from true north. A phone compass may show magnetic north. The gap is called magnetic declination, and it can pass 10° in parts of the US. That is enough to miss a weak station.

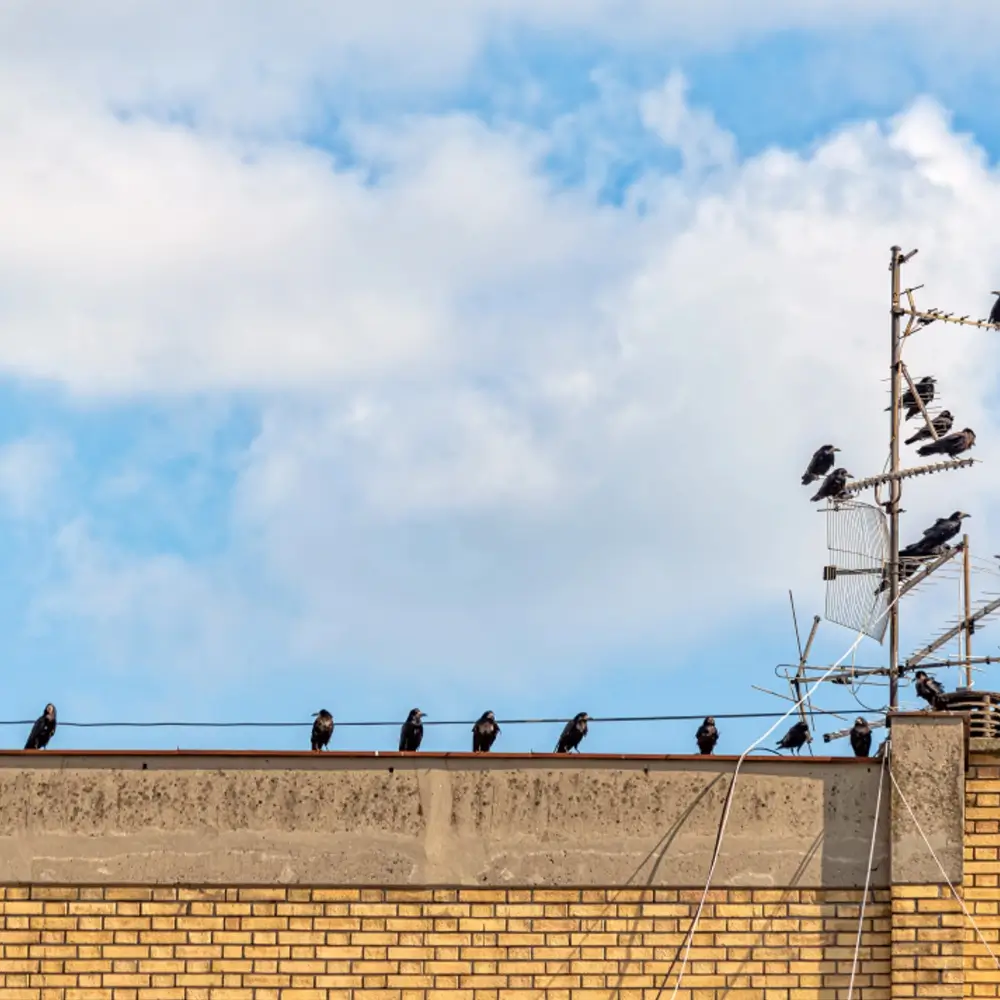

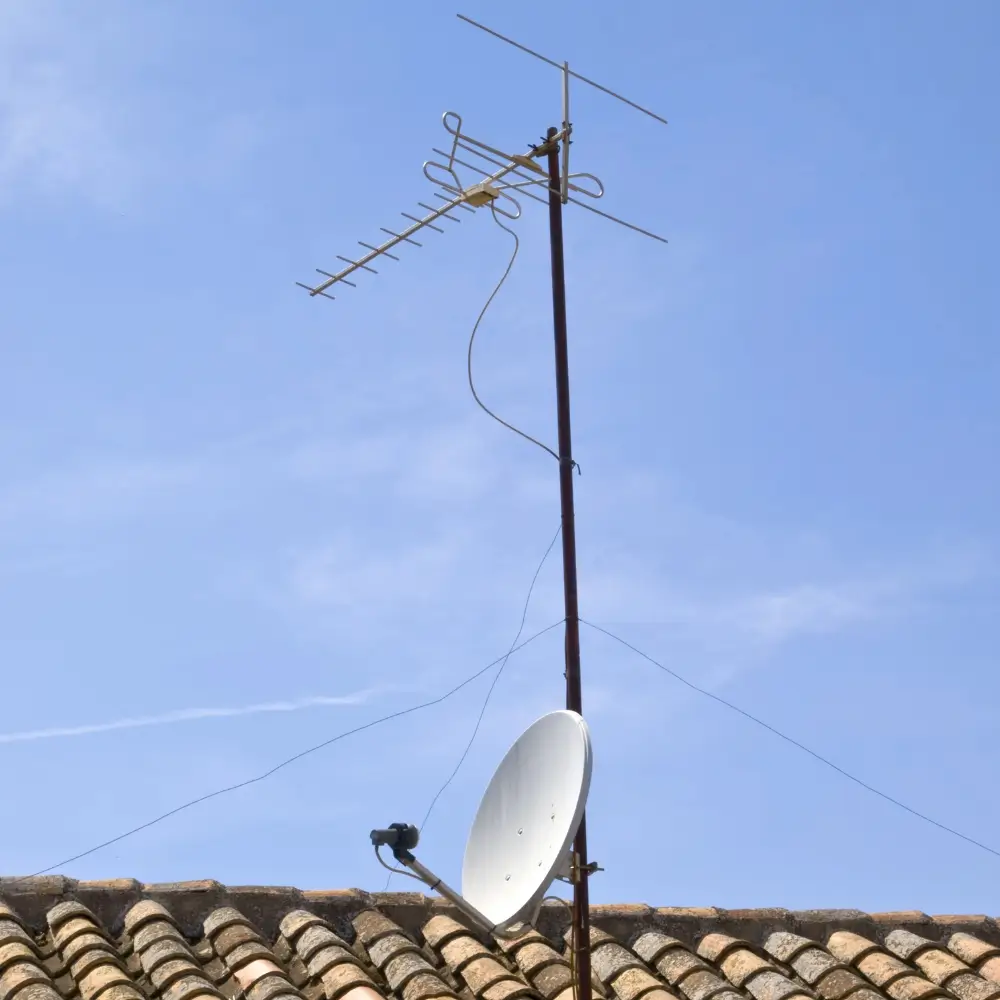

  3. Mount it high and clearHeight usually helps more than anything else. Roofs, trees and hills block UHF and microwave signals. An outdoor antenna nearly always beats an indoor one.
  4. Aim, then fine-tune slowlyTurn the antenna about 5° at a time. Wait a few seconds for the signal meter or TV signal screen to settle before you move again.
  5. Rescan and lock itFor TV, run a new channel scan after aiming. Tighten the mast and seal outdoor connectors against water.

A Yagi or log periodic gives more gain in one direction. An omnidirectional vertical such as a ground plane hears every direction but with less gain.

Antenna formulas you will use most

Quick answers to the questions people search for. Click through for the full calculator.

Wavelengthλ (m) = 299.79 / f (MHz)

146 MHz → 2.05 m

Half-wave dipoleL ≈ 143 / f (MHz) m

Or 468 / f in feet. 14.2 MHz → about 10.1 m. Exact length →

Quarter-wave verticalL ≈ 71.3 / f (MHz) m

Or 234 / f in feet. 146 MHz → about 49 cm. Ground plane →

dBi vs dBddBi = dBd + 2.15

A 6 dBd antenna is 8.15 dBi.

Coax impedance50 Ω · 75 Ω

50 Ω for radio, ham and Wi-Fi. 75 Ω for TV and satellite (RG-6). Cable loss →

Good SWR< 1.5:1 good · < 2:1 OK

At 2:1, about 11% of power is reflected. SWR calculator →

Imran Hossain, antenna engineer and founder of Antenna Direction

Built and checked by an antenna engineer

I'm Imran Hossain, an IEEE member with a B.Sc. in Electrical & Electronic Engineering. My research on compact implantable antennas is published on IEEE Xplore. I code every calculator on this site myself, and each one follows the same rules:

  • The formula is shown, with its source
  • Assumptions are stated clearly
  • Limits are explained honestly
  • A worked example is included
  • Common values are pre-calculated
  • Author and review date are shown
About the author Report an error

Frequently asked questions

Can't find your answer? Ask us.

What is Antenna Direction?

Antenna Direction is a free library of antenna calculators, aiming tools and guides. It helps ham operators, engineers, students and home users design an antenna, cut it to the right size and point it the right way.

Are the antenna calculators free?

Yes. All calculators are free, need no account and run in your browser on desktop or phone.

How accurate are the calculators?

They use standard formulas from antenna textbooks and the ARRL Antenna Book. For wire antennas, expect to land within 1–3% of resonance. Height, nearby objects and insulation shift the result, so cut a little long and trim with an antenna analyzer. Each page lists its limits.

Which direction should I point my TV antenna?

Point it at the TV transmitter. Our TV antenna direction finder shows the bearing to nearby stations. In the US, the FCC DTV Reception Maps also show the direction to each station. Check whether the bearing is from true north or magnetic north before you use a compass.

How do I calculate antenna length?

Start with wavelength: λ in meters = 299.79 ÷ frequency in MHz. A half-wave dipole is about 143 ÷ f meters in total. A quarter-wave vertical is about 71.3 ÷ f meters. Use the dipole calculator for an exact length that accounts for wire thickness.

Which antenna has the most gain?

Directional antennas such as Yagis, log periodics, helicals and dishes have the most gain because they focus energy in one direction. The trade-off is that they must be aimed. Omnidirectional antennas cover all directions with less gain.
